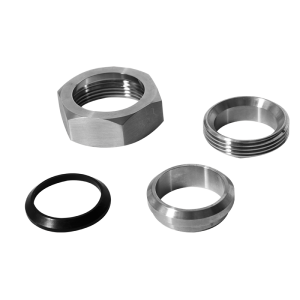

Bevel Seat Fittings are with ACME thread which provides easy, high purity and secure connection. Bevel Seat Union Fitting is make up of a hexagonal union nut, a thread ferrule, a plain ferrule and a gasket. It is very popular for the process system because its easy assembling and safe fast cleaning of pipelines. The bevel seat fitting of Kaysuns sanitary is forged and machined by CNC, polished surface meet 3A and FDA requirement, it is a good choise of indutries Pharmacy, Beer, Food, Petroleum, Dairy, Beverage,Biotech etc.
| PRODUCT | Bevel Seat Union Fittings- hex union nut, Thread Ferrule, Plain Ferrule, gasket etc. |
|---|---|
| DIMENSION | 1″ thru 4″ |
| MATERIAL | T304, T316L, EN 1.4301, EN 1.4404 etc. |
| STANDARD | Bevel Seat Fitting, 3A |
| SEALING GASKET | Silicone, EPDM, PTFE, Buna-N etc. |
| TEMPERATURE | -30°C / -22°F up to +120°C/ +248°F |
| APPLICATION | Pharmacy, Beer, Food, Petroleum, Dairy, Beverage,Biotech ,Cosmetics etc. |
| How to order | *Part Name*Size*Material*Quantity *Standard *Surface Finish |
Dimension of Bevel Seat Fittings – 3A – Bevel Seat Union – Hex Union Nut
| Size | B | C | D | E | G |
|---|---|---|---|---|---|
| 1″ | 38.02 | 34.34*1/8 | 30.3 | 23.0 | 46.0 |
| 1 1/2″ | 51.54 | 47.86*1/8 | 43.4 | 24.6 | 61.1 |
| 2″ | 65.05 | 61.37*1/8 | 56.5 | 27.0 | 76.2 |
| 2 1/2″ | 78.56 | 74.88*1/8 | 69.6 | 30.15 | 91.3 |
| 3″ | 92.08 | 88.4*1/8 | 82.7 | 32.5 | 106.4 |
| 4″ | 120.14 | 115.42*1/6 | 108.9 | 38.1 | 137.6 |
Dimension of Bevel Seat Fittings – 3A – Bevel Seat Union – Long Plain Weld Ferrule
| Size | A | B | C | E |
| 1” | 33.3 | 22.2 | 25.7 | 34.9 |
| 11/2″ | 46.8 | 34.9 | 38.4 | 38.1 |
| 2″ | 60.3 | 47.5 | 51.1 | 38.1 |
| 21/2″ | 73.8 | 60.2 | 63.8 | 44.5 |
| 3″ | 87.3 | 72.9 | 76.5 | 44.5 |
| 4″ | 114.3 | 97.4 | 101.9 | 44.5 |
Dimension of Bevel Seat Fittings – 3A – Bevel Seat Union – Plain Recessless Ferrule (Expanding)
| SIZE | A | B | C | D |
| 1” | 33.3 | 25.5 | 29.5 | 19.1 |
| 11/2″ | 46.8 | 38.2 | 42.6 | 28.6 |
| 2″ | 60.3 | 50.9 | 55.7 | 33.3 |
| 21/2″ | 73.8 | 63.6 | 68.8 | 34.9 |
| 3″ | 87.3 | 76.3 | 81.9 | 36.5 |
| 4″ | 114.3 | 101.7 | 108.1 | 38.1 |
Dimension of Bevel Seat Fittings – 3A – Bevel Seat Union – Short Plain Weld Ferrule
| SIZE | A | B | D | E |
| 1” | 22.2 | 25.7 | 33.3 | 18.3 |
| 11/2″ | 34.9 | 38.4 | 46.8 | 18.3 |
| 2″ | 47.5 | 51.1 | 60.3 | 19.1 |
| 21/2″ | 60.2 | 63.8 | 73.8 | 22.3 |
| 3″ | 72.9 | 76.5 | 87.3 | 23.1 |
| 4″ | 97.4 | 101.9 | 114.3 | 26.2 |
Dimension of Bevel Seat Fittings – 3A – Bevel Seat Union – Long Threaded Weld Ferrule
| SIZE | A | B | D | E | F |
| 1″ | 37.13ACME8TPI | 33.4 | 22.2 | 25.7 | 34.9 |
| 11/2″ | 50.65ACME8TPI | 47.0 | 34.9 | 38.4 | 38.1 |
| 2″ | 64.16ACME8TPI | 60.5 | 47.5 | 51.1 | 38.1 |
| 21/2″ | 77.67ACME8TPI | 74.0 | 60.2 | 63.8 | 44.5 |
| 3″ | 91.19ACME8TPI | 87.5 | 72.9 | 76.5 | 44.5 |
| 4″ | 119.25ACME6TPI | 114.5 | 97.4 | 101.9 | 44.5 |
Dimension of Bevel Seat Fittings – 3A – Bevel Seat Union – Threaded Recessless Ferrule (Expanding)
| SIZE | A | B | C | D | E | F | G |
| 1” | 37.13 | 33.45 | 30.2 | 25.5 | 29.5 | 20.6 | 16.5 |
| 11/2″ | 50.65 | 46.96 | 43.7 | 38.2 | 42.6 | 28.6 | 16.5 |
| 2″ | 64.17 | 60.48 | 57.2 | 50.9 | 55.7 | 34.9 | 17.1 |
| 21/2″ | 77.67 | 73.99 | 70.7 | 63.6 | 68.8 | 38.1 | 18.3 |
| 3″ | 91.19 | 87.5 | 84.2 | 76.3 | 81.9 | 41.3 | 19.1 |
| 4″ | 119.25 | 114.53 | 109.4 | 101.7 | 108.1 | 41.3 | 22.2 |
Dimension of Bevel Seat Fittings – 3A – Bevel Seat Union – Short Threaded Ferrule
| SIZE | A | D | E | G |
| 1” | 37.13+0-0.46 | 22.2 | 25.7 | 18.3 |
| 11/2″ | 50.65+0-0.48 | 34.9 | 38.4 | 18.3 |
| 2″ | 64.17+0-0.51 | 47.5 | 51.1 | 19.1 |
| 21/2″ | 77.67+0-0.53 | 60.2 | 63.8 | 22.2 |
| 3″ | 91.19+0-0.56 | 72.9 | 76.5 | 23.1 |
| 4″ | 119.25+0-0.64 | 97.4 | 101.9 | 26.2 |
Dimension of Bevel Seat Fittings – 3A – Bevel Seat Union – Solid End Cap – Blank Cap
| SIZE | B | D | E | F |
| 1” | 4.8 | 29.5 | 33.4 | 12.6 |
| 11/2″ | 4.7 | 42.6 | 46.9 | 14.3 |
| 2″ | 6.4 | 55.7 | 60.5 | 16.0 |
| 21/2″ | 7.1 | 69.0 | 73.9 | 18.2 |
| 3″ | 7.1 | 81.9 | 87.5 | 18.2 |
| 4″ | 7.9 | 108.0 | 114.5 | 20.6 |
*All dimension are in mm except specified.
**Contact us for more information about bevel seat union fittings.
