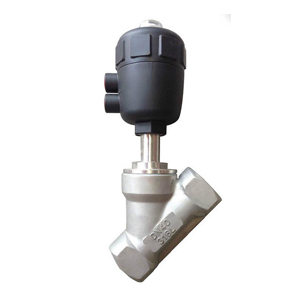

Sanitary Angle Seat Valve is applied in the industries of dairy, brewery, beverage, chemical, and pharmacy. It is operated by a single pneumatic actuator, select from either normally closed (NC) or normally open (NO) configurations. The design of sanitary angle seat valve is high sealing integrity, it is maintenance-free and robust valve. Wellgreen sanitary valves are good choice for the application of food,beverage,biopharm etc.

    Design:

• Process enviornment friendly – design of angle seat valve.

• Large flux, low resistance and no water-hammer :Y-type shape enlarged the flowing section, which could raise the flux by 30% and make flow more smooth.

• Super long lifetime–The valve stem is AISI 316 with strong anti-corrosive ability. The PTFE seals are in wedge shape, which help the stem adjust and lubricate itself automatically.

• Advanced pilot cylinder–The cylinder material is stainless steel or thickened engineering plastic, lubricates automatically, maintenance free, and rolls freely 360 degree.



    Material:

    Stainless Steel 304,316L or en.1.4301, 1.4404 etc.

    Strength:

•     Material of stainless steel 316L and 1.4404 is from reputed mill to guarantee the chemical composition and mechanical propertis. Material certificate will be submitted follow to orders.
•     Forged /investment casting valve body and disc to control the leakage and visual well.
•     Superior facilities and good experiences for fabrication.
•     In ability to improve and develop new design.
•     Fast delivery is possible to meet your needs well in time.
•     Low cost from bulk production will reduce your budget and improve your business.
•     Small quantity available.

    Quality & Inspection:

•      PMI test to verify material grade
•      Dimension controlling during fabricating and finished
•      Visual and surface 100% examination before shipment
•      Packed in carton box firstly, then in wooden case
•      Third party inspection available.

    Application:

    Food, Brewery, Beverage, Dairy, Pharmaceutical, Biopharma etc.

---

Technical Specifications & Options of Sanitary Angle Seat Valve

General Specifications of Sanitary Angle Seat Valve
Working Pressure		Max. Working Pressure		16 bar
Working Temperature		Continuous Working Temperature		-10°C ~ +180°C(PTFE)
Surface Finish		Internal Surface Finish		R?0.8?m
		External Surface Finish		Semi-light
Connections		Connection Standards		DIN, SMS, 3A, ISO
		Connection Standards		Welding, Clamp, Threading, Flange
Material
Metal Material		Product Wetted		316L (1.4404) Casted
		Other Steel Parts		304 (1.4301)
		EN 10204 3.1B certificate is available on request.
Seal Material		Standard		PTFE
		Options		FPM, Silicone, EPDM
		All seal materials comply with FDA 177.2600.
Manual Handles & Pneumatic Actuator
Pneumatic Actuator	Standard		Stainless Steel		Standard	Air/Air (A/A)
			Pneumatic Actuator		Options	Normally Closed (NC)/Normally Open (NO)
	Options		Plastic Pneumatic Actuator		Standard	Air/Air (A/A)
					Options	Normally Closed (NC)/Normally Open (NO)
	Air Supply		Dry & Filtered Compressed Air

*For more information of santiary angle seat valve, please contact us for details.
