Sanitary DIN Butterfly Valve

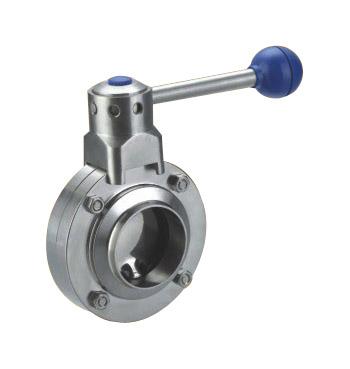

Sanitary DIN Butterfly Valve is DIN11851 series sanitary butterfly valves, we offer it with manual handle and pneumatic or electric actuator operated. Sanitary DIN butterfly valve is a commonly and widely sanitary valves because its low cost, simple structure and easy of maintenance. It is idea choice for the applications of Food, Brewery, Beverage, Dairy, Pharmaceutical etc. Being quick to install, easy to control, and excellent in performance, sanitary butterfly valve from Wellgreen brings you convenience and cost-saving.
Specification and Dimension of Sanitary DIN Butterfly Valves
Dimension of Sanitary Welded Butterfly Valve – DIN Series W5011
| Size | O | D | K x K | A | H |
| DN15 | 78.0 | 18.0 | 8.2*8.2 | 50.0 | 39.0 |
| DN20 | 78.0 | 22.0 | 8.2*8.2 | 50.0 | 39.0 |
| DN25 | 78.0 | 28.0 | 8.2*8.2 | 50.0 | 39.0 |
| DN32 | 82.0 | 34.0 | 8.2*8.2 | 50.0 | 41.0 |
| DN40 | 88.0 | 40.0 | 8.2*8.2 | 50.0 | 44.0 |
| DN50 | 110.0 | 52.0 | 8.2*8.2 | 52.0 | 55.0 |
| DN65 | 127.0 | 70.0 | 10.0*10.0 | 58.0 | 63.5 |
| DN80 | 140.0 | 85.0 | 10.0*10.0 | 64.0 | 70.0 |
| DN100 | 160.0 | 104.0 | 10.0*10.0 | 66.0 | 80.0 |
| DN125 | 190.0 | 129.0 | 12.0*12.0 | 74.0 | 95.0 |
| DN150 | 225.0 | 154.0 | 12.0*12.0 | 80.0 | 112.5 |
Dimension of Sanitary Clamped Butterfly Valve – DIN Series W5024
| Size | O | D | K x K | A | H |
| DN15 | 78.0 | 34.0 | 8.2*8.2 | 68.0 | 39.0 |
| DN20 | 78.0 | 34.0 | 8.2*8.2 | 68.0 | 39.0 |
| DN25 | 78.0 | 50.5 | 8.2*8.2 | 68.0 | 39.0 |
| DN32 | 82.0 | 50.5 | 8.2*8.2 | 72.0 | 41.0 |
| DN40 | 88.0 | 50.5 | 8.2*8.2 | 72.0 | 44.0 |
| DN50 | 110.0 | 64.0 | 8.2*8.2 | 74.0 | 55.0 |
| DN65 | 127.0 | 91.0 | 10.0*10.0 | 80.0 | 63.5 |
| DN80 | 140.0 | 106.0 | 10.0*10.0 | 86.0 | 70.0 |
| DN100 | 160.0 | 119.0 | 10.0*10.0 | 90.0 | 80.0 |
| DN125 | 190.0 | 145.0 | 12.0*12.0 | 114.0 | 95.0 |
| DN150 | 225.0 | 167.0 | 12.0*12.0 | 120.0 | 112.5 |
Dimension of Sanitary Three-piece Butterfly Valve – DIN Series W5027
| Size | O | D | KxK | A | H |
| DN15 | 78.0 | 18.0 | 8.2*8.2 | 100.0 | 39.0 |
| DN20 | 78.0 | 22.0 | 8.2*8.2 | 100.0 | 39.0 |
| DN25 | 78.0 | 28.0 | 8.2*8.2 | 100.0 | 39.0 |
| DN32 | 82.0 | 34.0 | 8.2*8.2 | 100.0 | 41.0 |
| DN40 | 88.0 | 40.0 | 8.2*8.2 | 100.0 | 44.0 |
| DN50 | 110.0 | 52.0 | 8.2*8.2 | 100.0 | 55.0 |
| DN65 | 127.0 | 70.0 | 10.0*10.0 | 100.0 | 63.5 |
| DN80 | 140.0 | 85.0 | 10.0*10.0 | 100.0 | 70.0 |
| DN100 | 160.0 | 104.0 | 10.0*10.0 | 108.0 | 80.0 |
| DN125 | 190.0 | 129.0 | 12.0*12.0 | 130.0 | 95.0 |
| DN150 | 225.0 | 154.0 | 12.0*12.0 | 140.0 | 112.5 |
Dimension of Sanitary Threaded Butterfly Valve – DIN Series W5004
| Size | O | G | KxK | A | H |
| DN15 | 78.0 | RD34*1/8 | 8.2*8.2 | 68.0 | 39.0 |
| DN20 | 78.0 | RD44*1/6 | 8.2*8.2 | 68.0 | 39.0 |
| DN25 | 78.0 | RD52*1/6 | 8.2*8.2 | 68.0 | 39.0 |
| DN32 | 82.0 | RD58*1/6 | 8.2*8.2 | 68.0 | 41.0 |
| DN40 | 88.0 | RD65*1/6 | 8.2*8.2 | 70.0 | 44.0 |
| DN50 | 110.0 | RD78*1/6 | 8.2*8.2 | 80.0 | 55.0 |
| DN65 | 127.0 | RD95*1/6 | 10.0*10.0 | 80.0 | 63.5 |
| DN80 | 140.0 | RD110*1/4 | 10.0*10.0 | 86.0 | 70.0 |
| DN100 | 160.0 | RD130*1/4 | 10.0*10.0 | 88.0 | 80.0 |
| DN125 | 190.0 | RD130*1/4 | 12.0*12.0 | 90.0 | 95.0 |
| DN150 | 225.0 | RD190*1/4 | 12.0*12.0 | 90.0 | 112.5 |
Dimension of Sanitary Welded x Threaded Butterfly Valve – DIN Series
| Size | O | D | G | KxK | A | H |
| DN15 | 78.0 | 18.0 | RD34*1/8 | 8.2*8.2 | 59.0 | 39.0 |
| DN20 | 78.0 | 22.0 | RD44*1/6 | 8.2*8.2 | 59.0 | 39.0 |
| DN25 | 78.0 | 28.0 | RD52*1/6 | 8.2*8.2 | 59.0 | 39.0 |
| DN32 | 82.0 | 34.0 | RD58*1/6 | 8.2*8.2 | 59.0 | 41.0 |
| DN40 | 88.0 | 40.0 | RD65*1/6 | 8.2*8.2 | 60.0 | 44.0 |
| DN50 | 110.0 | 52.0 | RD78*1/6 | 8.2*8.2 | 66.0 | 55.0 |
| DN65 | 127.0 | 70.0 | RD95*1/6 | 10.0*10.0 | 69.0 | 63.5 |
| DN80 | 140.0 | 85.0 | RD110*1/4 | 10.0*10.0 | 75.0 | 70.0 |
| DN100 | 160.0 | 104.0 | RD130*1/4 | 10.0*10.0 | 77.0 | 80.0 |
| DN125 | 190.0 | 129.0 | RD130*1/4 | 12.0*12.0 | 82.0 | 95.0 |
| DN150 | 225.0 | 154.0 | RD190*1/4 | 12.0*12.0 | 85.0 | 112.5 |
Dimension of Sanitary Square-Flanged x threaded Butterfly Valve – DIN Series W5028
| Size | O | G | Of | A |
| DN15 | 78.0 | RD34*1/8 | 100*100 | 84.0 |
| DN20 | 78.0 | RD44*1/6 | 100*100 | 84.0 |
| DN25 | 78.0 | RD52*1/6 | 100*100 | 84.0 |
| DN32 | 82.0 | RD58*1/6 | 100*100 | 84.0 |
| DN40 | 88.0 | RD65*1/6 | 100*100 | 85.0 |
| DN50 | 110.0 | RD78*1/6 | 100*100 | 90.0 |
* All dimensions are in mm expect specified.
* For more information about sanitary DIN butterfly valves, please contact us when you feel free.
