Sanitary ISO Ferrule

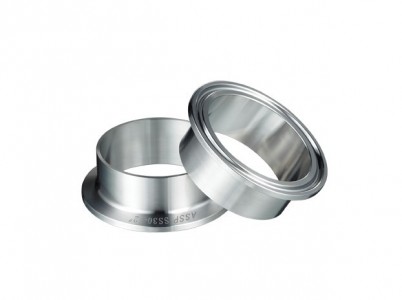

Sanitary ISO ferrule is a general sanitary ferrule for Kaysuns sanitary. We are ability to offer ISO and IDF ferrule with high purity surface and good precision, and available for customized design and fabrication with small quantity and special material.
| PRODUCT | Sanitary Ferrules |
|---|---|
| DIMENSION | 1/2″ thru 12″ |
| MATERIAL | EN 1.4301, EN 1.4404, T304, T316L etc. |
| STANDARD | ISO2852 , IDF, ISO1127 |
| SEALING GASKET | Silicone, EPDM, PTFE, Buna-N etc. |
| TEMPERATURE | -30°C / -22°F up to +120°C/ +248°F |
| APPLICATION | Pharmacy, Beer, Food, Petroleum, Dairy, Beverage,Biotech ,Cosmetics etc. |
| How to order | *Part Name*Size*Material *Quantity *Standard *Surface Finish |
Dimension of Sanitary ISO Ferrule – IDF Ferrule – Sanitary Fittings – Stainless Steel Sanitary Ferrules W2011
| Size | D | D1 | H | t(mm) |
| 1/2″ | 12.7 | 25.4 | 21.5 | 1.5/1 |
| 3/4″ | 19.1 | 25.4 | 21.5 | 1.5/1 |
| 1″ | 25.4 | 50.5 | 21.5 | 1.5/1.2 |
| 1 1/4″ | 31.8 | 50.5 | 21.5 | 1.5/1.2 |
| 1 1/2″ | 38.1 | 50.5 | 21.5 | 1.5/1.2 |
| 45 | 45 | 64 | 21.5 | 1.5 |
| 2″ | 50.8 | 64 | 21.5 | 1.5 |
| 57 | 57 | 77.5 | 21.5 | 2.0 |
| 2 1/2″ | 63.5 | 77.5 | 21.5 | 2.0 |
| 3″ | 76.2 | 91 | 21.5 | 2.0 |
| 3 1/2″ | 89 | 106 | 21.5 | 2.0 |
| 4″ | 101.6 | 119 | 21.5 | 2.0 |
| 108 | 108 | 119/130 | 21.5 | 2.0 |
| 114.3 | 114.3 | 130 | 21.5 | 2.0 |
| 133 | 133 | 155 | 28 | 3.0 |
| 159 | 159 | 183 | 28 | 3.0 |
| 204 | 204 | 217 | 28 | 2.0 |
| 219 | 219 | 233.5 | 28 | 3.0 |
| 254 | 254 | 268.5 | 28 | 2.0 |
| 304 | 304 | 319 | 28 | 2.0 |
Dimension of Sanitary ISO Ferrule – IDF Ferrule – Sanitary Fittings – Stainless Steel Sanitary Ferrules
| Size | D | D1 | H | t |
| 12.7 | 12.7 | 25.4 | 21.5 | 1.5/1.0 |
| 19 | 19.1 | 25.4 | 21.5 | 1.5/1.0 |
| 25 | 25.4 | 50.5 | 21.5 | 1.5/1.2 |
| 32 | 31.8 | 50.5 | 21.5 | 1.5/1.2 |
| 38 | 38.1 | 50.5 | 21.5 | 1.5/1.2 |
| 45 | 45 | 64 | 21.5 | 1.5 |
| 51 | 50.8 | 64 | 21.5 | 1.5 |
| 57 | 57 | 77.5 | 21.5 | 2.0 |
| 63 | 63.5 | 77.5 | 21.5 | 2.0 |
| 76 | 76.2 | 91 | 21.5 | 2.0 |
| 89 | 89 | 106 | 21.5 | 2.0 |
| 102 | 101.6 | 119 | 21.5 | 2.0 |
| 108 | 108 | 119/130 | 21.5 | 2.0 |
| 114.3 | 114.3 | 130 | 21.5 | 2.0 |
| 133 | 133 | 155 | 28 | 3.0 |
| 159 | 159 | 183 | 28 | 3.0 |
| 204 | 204 | 217 | 28 | 2.0 |
| 219 | 219 | 233.5 | 28 | 3.0 |
| 254 | 254 | 268.5 | 28 | 2.0 |
| 304 | 304 | 319 | 28 | 2.0 |
Dimension of Sanitary ISO Ferrule – Gasket – Sealing – Sanitary Fittings – Stainless Steel Sanitary Ferrules W2014
| Size | D1 | H |
| 1″ | 50.5 | 5 |
| 1 1/2″ | 50.5 | 5 |
| 2″ | 64 | 5.5 |
| 2 1/2″ | 77.5 | 5.5 |
| 3 | 91 | 5.5 |
| 3 1/2″ | 106 | 5.5 |
| 4″ | 119 | 5.5 |
| 4 1/2″ | 130 | 5.5 |
| 5″ | 145 | 5.5 |
| ?133 | 155 | 5.5 |
| 6″ | 167 | 5.5 |
| ? 159 | 183 | 5.5 |
| 8″ | 217.4 | 5.5 |
| ?219 | 233.5 | 5.5 |
| 10″ | 268 | 5.5 |
| 12″ | 319 | 5.5 |
Dimension of Sanitary Ferrule – ISO1127 – Sanitary Fittings – Stainless Steel Sanitary Ferrules
| Size | H | D1 | D | t |
| 21.3 | 21.5 | 50.5 | 21.3 | 1.6 |
| 26.9 | 21.5 | 50.5 | 26.6 | 1.6 |
| 33.7 | 21.5 | 50.5 | 33.7 | 2.0 |
| 42.4 | 21.5 | 64 | 42.4 | 2.0 |
| 48.3 | 21.5 | 64 | 48.3 | 2.0 |
| 60.3 | 21.5 | 77.5 | 60.3 | 2.0 |
| 76.2 | 21.5 | 91 | 76.1 | 2.0 |
| 88.9 | 21.5 | 106 | 88.9 | 2.0 |
| 114.3 | 21.5 | 130 | 114.3 | 2.0 |
| 139.7 | 28.0 | 155 | 139.7 | 2.0 |
| 168.3 | 28.0 | 183 | 168.3 | 3.6 |
| 219.1 | 28.0 | 233.5 | 219.1 | 3.6 |
*All dimension are in mm except specified.
**Contact us for more information about this ferrule.
