Sanitary Three Piece Ball Valve
Sanitary Three Piece ball Valve is 3 splitted design sanitary ball valve, it is non retention valve too. Three piece ball valve is made in stainless steel 1.4301, 1.4404 or T316L, T304 ete of DIN, SMS standards etc. The valve body is investment casting or forged, and connection can be tri-clamp, welded, threaded, and flanged. Wellgreen sanitary provides a wide range of sanitary valves for food processing, beverages, fruit juices, wine, biopharmaceutical etc.
Strength:
- Stainless steel T316L, T304, 1.4301, 1.4404 or specified.
- Variety connection of tri-clamp, welded, threaded, flanged etc.
- Surface finishing: External surface sand blasting, Internal surface Ra0.6?m.
- Process controller,valve positioning etc on request.
- Gasket materials complies with FDA 177.2600.
- Standard of 3A,DIN,SMS,ISO,IDF,BPE,RJT etc.
Application:
Food, Brewery, Beverage, Dairy, Pharmaceutical, Biopharma etc.
| PRODUCT | Sanitary Three Piece Ball Valve |
|---|---|
| DIMENSION | 1″ ~ 4″ |
| MATERIAL | T304, T316L, 1.4301, 1.4404 etc. |
| STANDARD | 3A,DIN,SMS,ISO,IDF,BPE,RJT etc. |
| SEALING GASKET | PTFE, TFM etc. |
| TEMPERATURE | -30°C / -22°F up to +200°C/ +248°F |
| Pressure | 10-30bar (based on seal material and temperature) |
| Operation | Manual, Pneumatic, Electric |
| APPLICATION | Pharmacy, Beer, Food, Petroleum, Dairy, Beverage,Biotech ,Cosmetics etc. |
| How to order | *Part Name *Size *Material *Quantity *Standard |

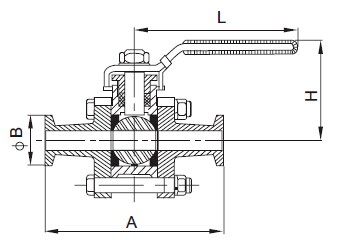

Dimension of Three-Piece Clamped Ball Valve – Sanitary Ball Valves W5043
| Size | A | B | H | L |
| 1/2″ | 75.0 | 25.0 | 64.0 | 125.0 |
| 3/4″ | 90.0 | 50.5 | 67.0 | 125.0 |
| 1″ | 100.0 | 50.5 | 83.0 | 140.0 |
| 11/4″ | 110.0 | 50.5 | 89.0 | 140.0 |
| 11/2″ | 125.0 | 50.5 | 100.0 | 200.0 |
| 2″ | 150.0 | 64.0 | 108.0 | 200.0 |
| 21/2″ | 190.0 | 77.5 | 150.0 | 250.0 |
| 3″ | 220.0 | 91.0 | 161.0 | 250.0 |
| 4″ | 270.0 | 119.0 | 180.0 | 290.0 |

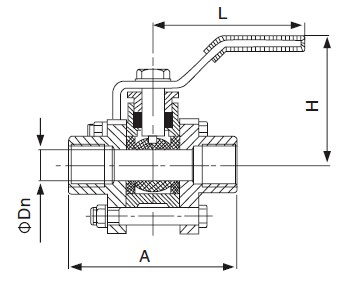

Dimension of Three-Piece Female Threaded Ball Valve – Sanitary Ball Valves W5042
| Size | Dn | A | H | L |
| 1/2″ | 15.0 | 130.0 | 130.0 | 72.0 |
| 3/4″ | 20.0 | 130.0 | 130.0 | 85.0 |
| 1″ | 25.0 | 165.0 | 165.0 | 90.0 |
| 11/4″ | 32.0 | 165.0 | 165.0 | 112.0 |
| 11/2″ | 38.0 | 190.0 | 190.0 | 120.0 |
| 2″ | 50.0 | 250.0 | 190.0 | 145.0 |
| 21/2″ | 65.0 | 250.0 | 250.0 | 185.0 |
| 3″ | 80.0 | 280.0 | 250.0 | 210.0 |
| 4″ | 100.0 | 280.0 | 268.0 |

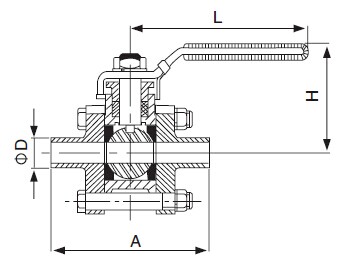

Dimension of Three-Piece Welded Ball Valve – Sanitary Ball Valves
| Size | A | D | H | L |
| 1/2″ | 72.0 | 22.7 | 60.0 | 130.0 |
| 3/4″ | 85.0 | 27.5 | 64.0 | 130.0 |
| 1″ | 90.0 | 33.5 | 71.0 | 165.0 |
| 11/4″ | 112.0 | 42.0 | 78.0 | 165.0 |
| 11/2″ | 120.0 | 48.6 | 86.0 | 190.0 |
| 2″ | 145.0 | 60.5 | 95.0 | 190.0 |
| 21/2″ | 185.0 | 76.3 | 130.0 | 250.0 |
| 3″ | 215.0 | 90.0 | 148.0 | 250.0 |
| 4″ | 270.0 | 106.5 | 173.0 | 280.0 |
* For more information about sanitary three piece ball valve, please contact us when you feel free.
