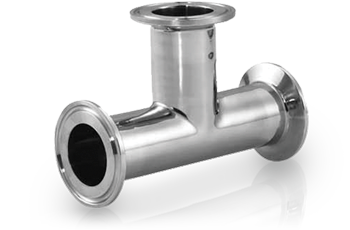

Sanitary Tri-clamp Tee

Sanitary Tri-clamp Tee are connected by coupling clamp, use of high purity sanitary gasket to seal. The fittings are with good performance and low cost, it is most popular caused fast installation, easy assembly and unassembly in the process lines and equipment. Sanitary Clamp Tee includes equal and reducing, made in material 304 and 316 or specified grade, with the advantage of high purity surface and corrosion resistance. Wellgreen offers sanitary clamp tee through 1/2″ to 12″, with standard 3A, DIN, SMS, BS, ISO, IDF, DS, BPF, I-Line etc.

Sanitary and Hygienic Clamp Tee – Equal and Reducing
Size 1/2″ thru 12″
Material T304, T316L, EN 1.4301, EN 1.4404 etc.
Standard 3A, DIN, SMS, BS, ISO, BPF, ISO, IDF,INCH etc.
End Connection Tri-Clamped
Surface Dull polished, Descaled finish, Mirror polished
Gasket PTFE, EPDM, Buna-N, Silicone Gasket
Application Food, Brewery, Beverage, Dairy, Pharmaceutical, Fine chemical, Cosmetic etc.
How to order *Products Name*Dimension*Material*Quantity*Standard*Polish requests

sanitary tri-clamp tee tube from Wellgreen

Dimension of Sanitary ClampTee – Equal and Reducing – DIN W1057

Size

D

L

DN10

34

44

DN15

34

53

DN20

34

58

DN25

50.5

71.5

DN32

50.5

76.5

DN40

50.5

81.5

DN50

64

91.5

DN65

91

108

DN80

106

118

DN100

119

128

DN125

144.5

225

DN150

167

263

*All dimensions are in mm except specified.
