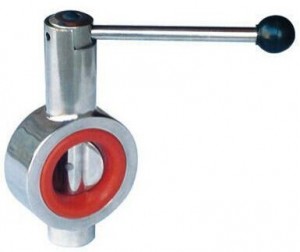

Sanitary Wafer Butterfly Valve
Sanitary Wafer Butterfly Valve is wafer type design sanitary butterfly valves, we provides dimension DN40 to DN100 in stainless steel 1.4301, 1.4404, T304, T316L etc. All of our sanitary valves are make by CNC machine to make sure of excellent precision and high purity surface to meet the request of hygienic industries. It is idea choice for the applications of Food, Brewery, Beverage, Dairy, Pharmaceutical etc.
Specification and Dimension of Sanitary Wafer Butterfly Valves
Dimension of Sanitary Wafer Butterfly Valve – Sanitary Valves W5032
|
Size |
A |
O |
L |
H |
|
DN40 |
38.0 |
85.0 |
120.0 |
122.0 |
|
DN 50 |
39.0 |
95.0 |
120.0 |
127.0 |
|
DN 65 |
42.0 |
107.0 |
120.0 |
133.0 |
|
DN 80 |
43.0 |
125.0 |
120.0 |
142.0 |
|
DN 100 |
46.0 |
156.0 |
150.0 |
158.0 |
|
DN 125 |
48.0 |
180.0 |
150.0 |
160.0 |
|
DN 150 |
65.0 |
205.0 |
170.0 |
180.0 |
|
DN200 |
60.0 |
252.0 |
210.0 |
195.0 |
* All dimensions are in mm expect specified.
* For more information about sanitary butterfly valves, please contact us when you feel free.
